7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable

Product Categories
SOGOO TECHNOLOGY CO., LTD
Contact Now

7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable

Brand Name : OEM/ODM

Certification : CE, RoHS

Place of Origin : China

MOQ : 50 pcs

Price : sales@sogootelecom.com

Payment Terms : Paypal,T/T, Western union

Supply Ability : 2000 pcs per week

Delivery Time : 3~15 days

Packaging Details : PP bag+ paper carton

Product Name : 7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial Jumper Cable

Length : 2m~10m

Compatible : Huawei ZTE

Connector : 7/16 DIN Female - 4.3-10 Male

Application : 4g 5G

Cable : 1/2" Flex RF Coaxial Cable

Contact Now

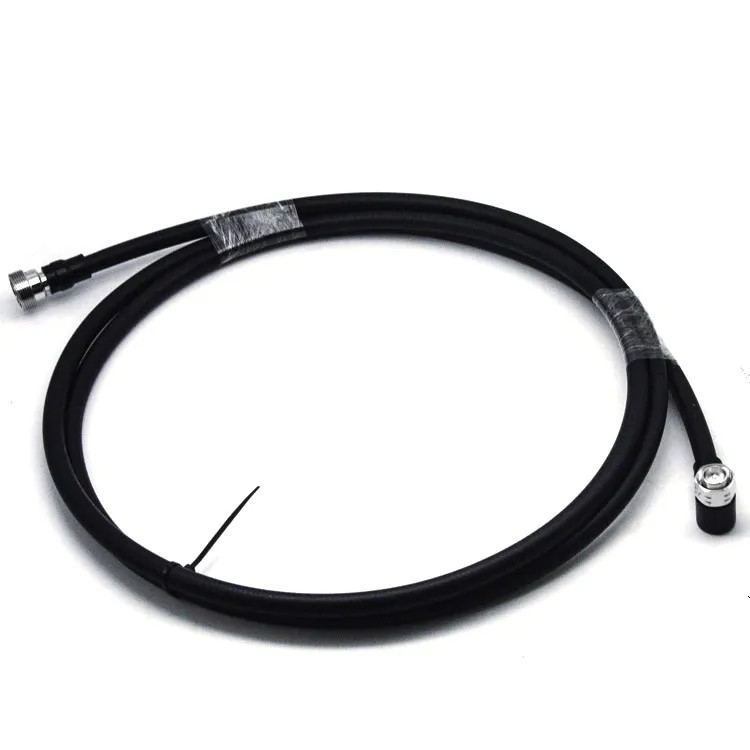

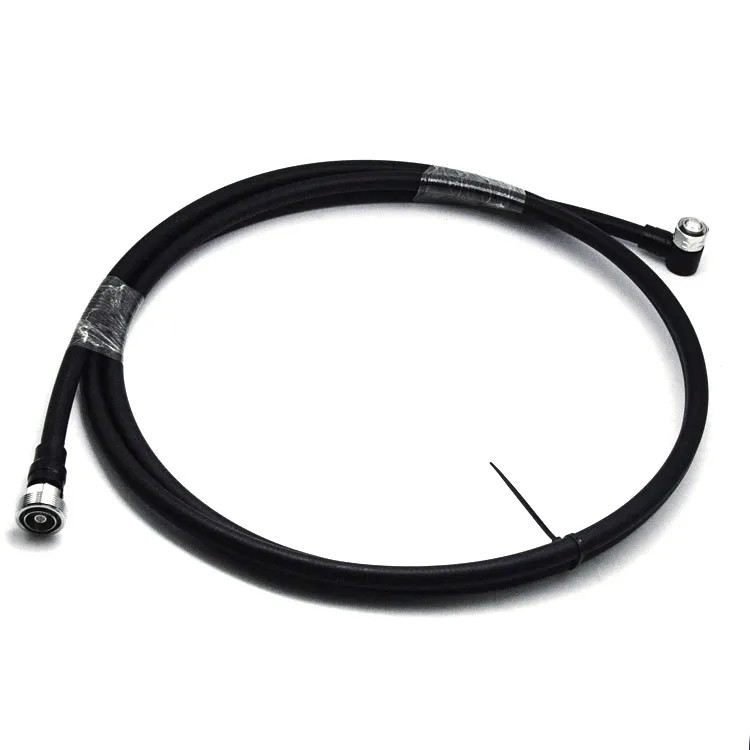

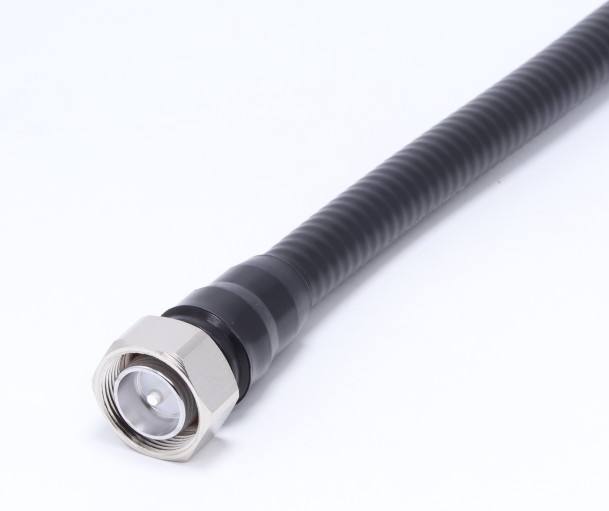

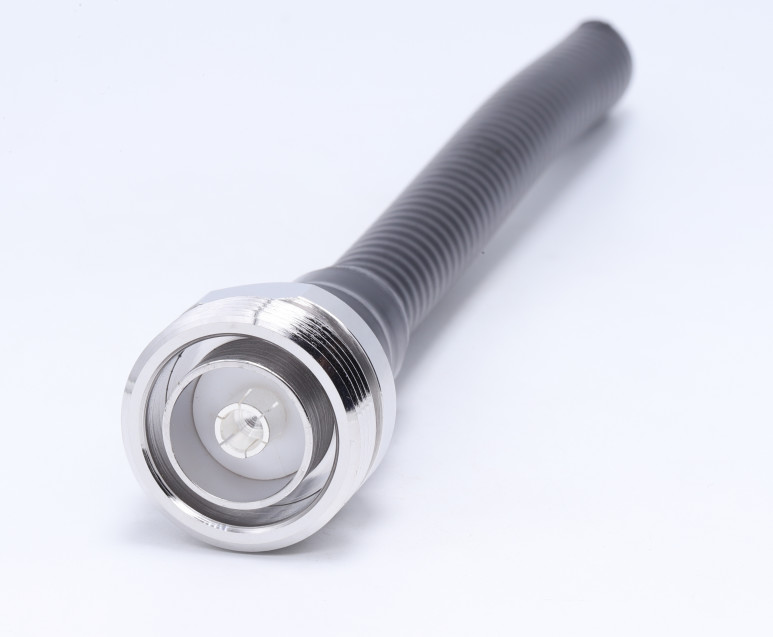

7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable

7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable

7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable

Interface

According to: IEC60169-4/IEC61169-54

Electrical

1.Characteristic Impedance:50ohm

2.Frequency Range:DC-3.6GHz

3.VSWR:≤1.25

4.PIM:≤-160dBc

5.Dielectric withstanding voltage:≥2500RMS,50Hz,at sea level

6.Dielectric Resistance:≥5000MΩ

7.Contact Resistance:Outer Contact≤0.2mΩ ;Center Contact≤0.4mΩ

Mechanical

1.Durability :Mating cycles ≥100

2.Material and plating:

Body Material: Brass Plating: Tri-alloy

Insulator Material: PTFE

Center Conductor Material:Brass /Phosphor Bronze Plating: Ag

Environmental

1.Temperature Range:-40℃~+85℃

2.RoHS Compliant: Pass

Q&A

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products.

Q5: What about delivery time?

A: 1) Samples: within one week.

2) Goods: 15-20 days usually.

Packing & Delivery

AS customer requirements

Inner packing:Bubble

Outer packing:carton

Foam + Blister + Vacuumize +Carton

Any kind of packing can be mixed.

Delivery:7-15Days after payments

Look forward to your inquiry to 7/16 DIN Female - 4.3-10 Male 1/2" Superflex RF Coaxial jumper Cable.
